Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$12.39 Each
10+ = $11.23
50+ = $10.13
Product at a glance
Details & specifications
Break strength
300 lb
Working load limit
100 lb
1 Inch Cam Buckle Tie-Down
Components & materials
- CS1-5C 1 Inch Cinch Style Zinc Diecast Cam Buckle
- CG2B #2 Brass Grommet installed on each end, adjustable strap has a sewn-in pull loop
- CW1-Y3PE 1 Inch 3M Yellow Polyester Tie-Down Webbing
Dimensions
- Product weight: 0.4 lb
- Fixed End 1 Ft (12 Inches)
- Adjustable Strap 5 Ft
- Total Strap Length 6 Ft (72 Inches)
Additional details
- No Strap Tag, White Polyester Thread
Product notes
- Tie-downs, Cam Buckle Tie-down, Grommet On Both Ends
- One Piece Cam Buckle Configuration Has A Fixed End Sewn To The Back Of The Buckle And An Adjustable Strap Permanently Fed Through The Buckle To Prevent Removal
- Cam Buckle Tie-downs Are Pulled Tight By Hand, No Mechanical Tightening Mechanism
- Product Has A Sewn-in Pull Loop On Adjustable Strap To Make Tightening Easier
- Grommet Is Installed On Both The Fixed End And End Of The Adjustable Strap
- On The Grommet End Of Each Strap, The Webbing Is Folded Over And Sewn To Provide Higher Strength
- Each Grommet Is Installed 3/4 (0.75) Inch From The End Of The Strap To The Center Of The Grommet
- Standard Duty Cam Buckle For General And Light Commercial Applications
- Cinch Cam Buckle Is Made From Zinc-Diecast Metal And Has A Zinc-silver Finish. Zinc-Diecast Buckles Are Rust Proof
- Size #2 Grommet Installed On Both Ends Has A Inside Diameter Of 3/8 Inch (0.375)
- Grommets Are Made Of Brass And Have The Standard Gold Brass Color
- Strap Is Made With 3000 Lb Polyester Tie-down Webbing

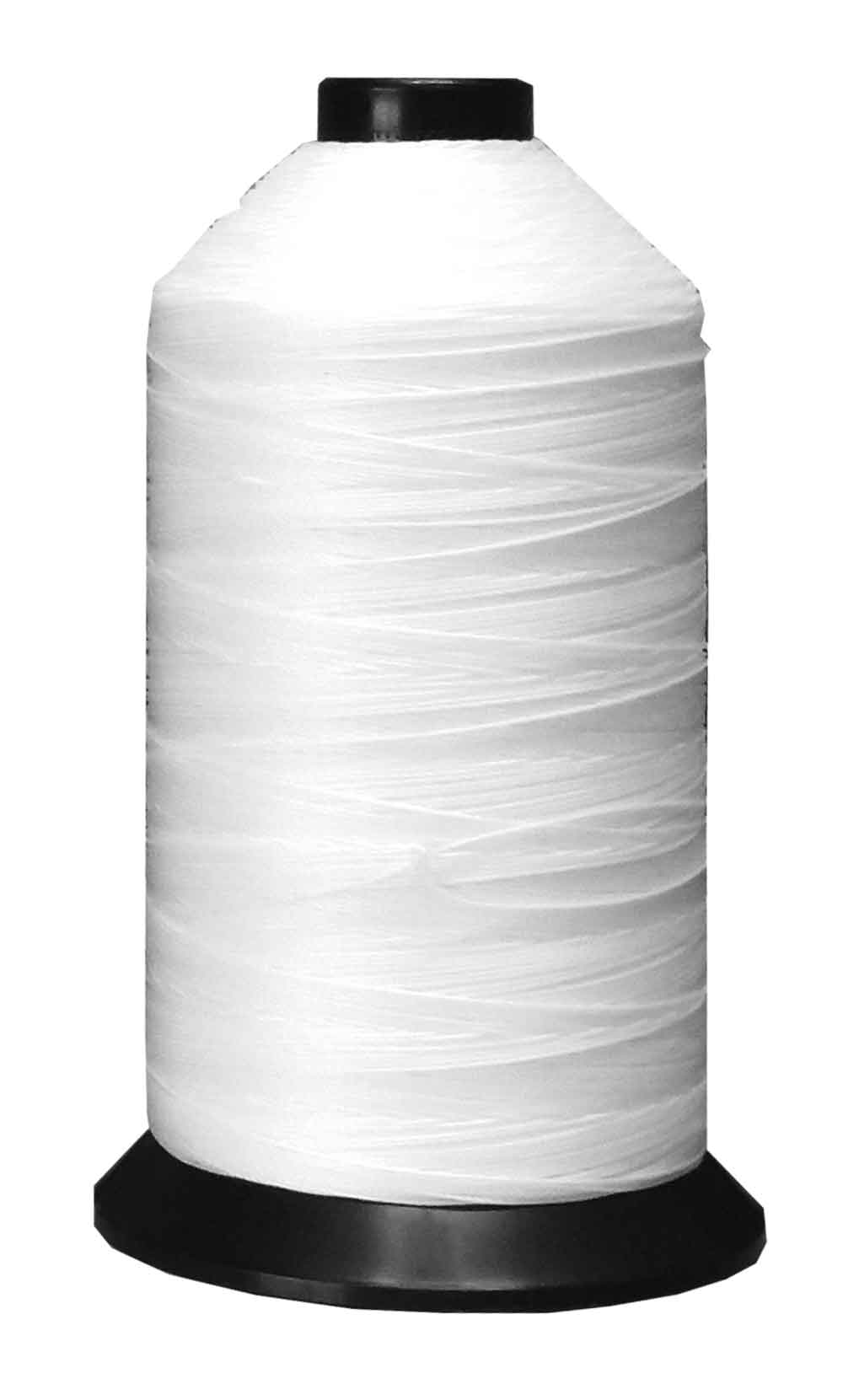

- Sewn With White Polyester Thread
- Strap Lengths Are Measured As The Webbing Portion Only, The Cam Buckle Is Not Included In The Measurement
- Sewn In The Standard Method To Meet Provided Strength Rating
- Sewn With The Small Tie-down Stitch
- No Strap Warning Tag Or Labeling On The Product
- No Instruction Sheet Included
Component specifications
Component strengths
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
