Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$11.49 Each
40+ = $10.41
Product at a glance
Details & specifications
Break strength
5000 lb
Working load limit
1,667 lb

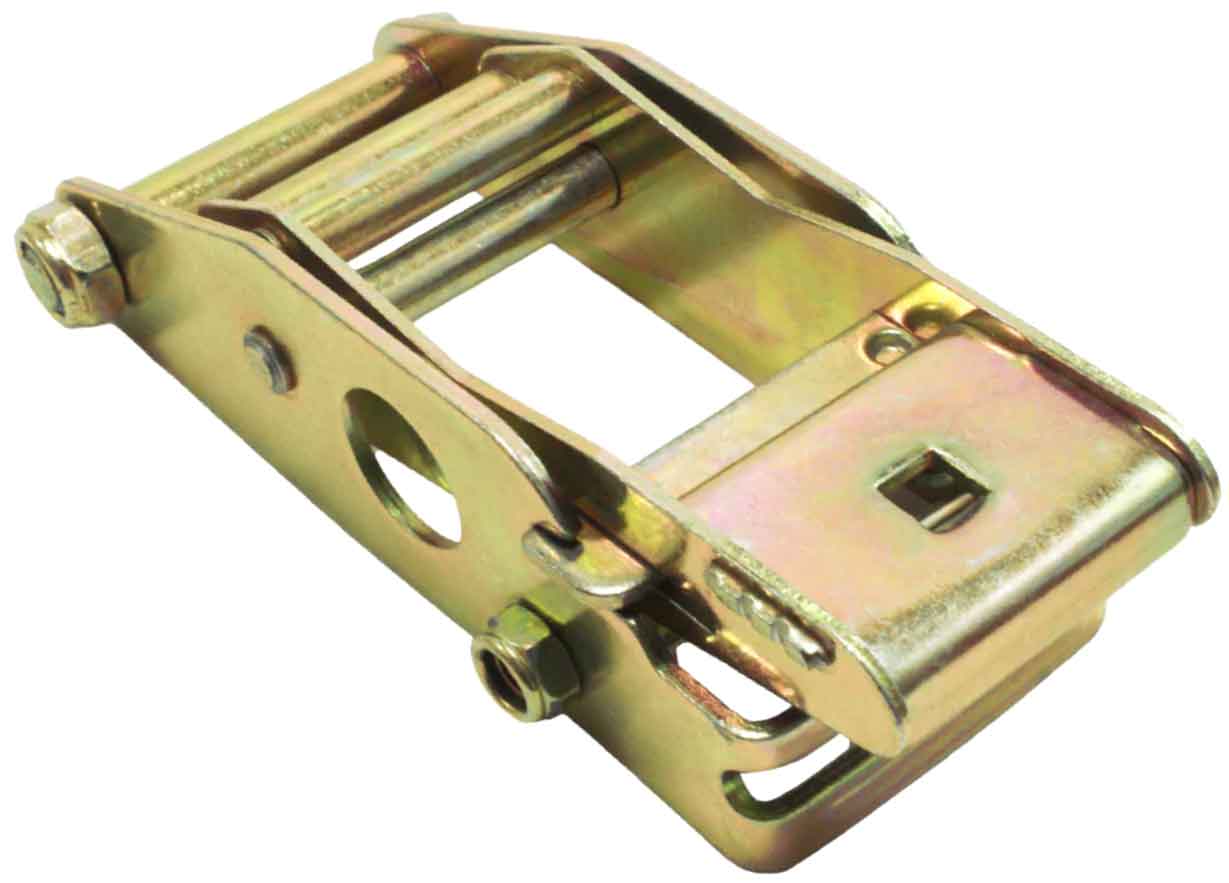

1.75 Inch Overcenter Buckle, Zinc-Yellow
Dimensions
- Product weight: 0.7 lb
Additional details
- Quality Tested
Product notes
- Component Only, Buckle, Overcenter Buckle, Hardware Only
- This Product Is An Overcenter Buckle Only, Sold Individually
- Overcenter Buckle Clasps Tight When Closed

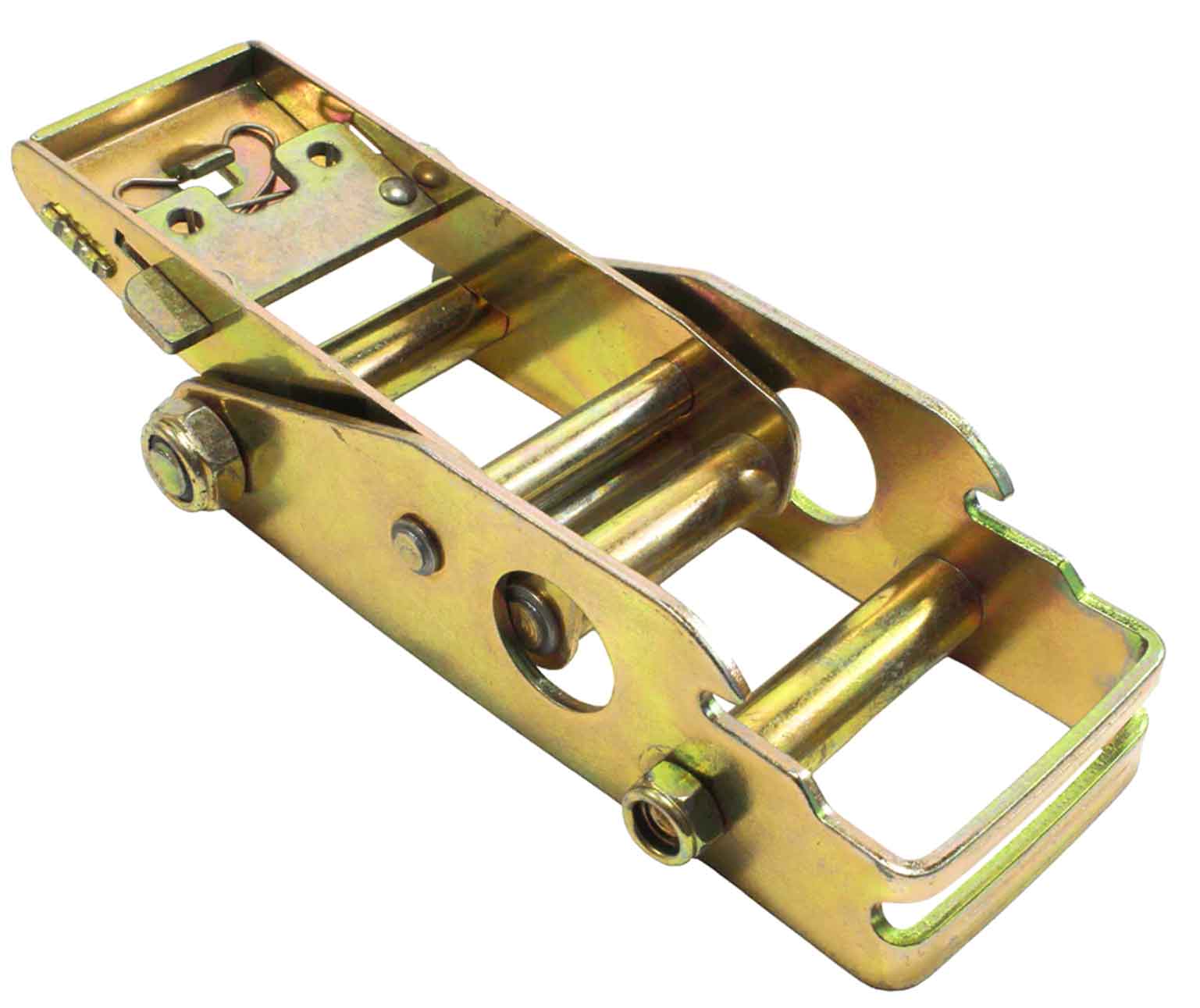

- An Overcenter Buckle Is Made Up Of Two Parts, The Frame And The Lever Arm That Hinges In The Frame
- For Proper Use, A Strap Is Fed Through The Slots In The Frame, Through The Lever Arm And Back Out The Front Of The Buckle. The Buckle Is Then Clasped Shut To Lock The Strap In Place
- Overcenter Buckles Provide A Small Amount Of Tension When Clasped Shut, But Require The Operator To Remove As Much Slack From The Strap As Possible Before Closing
- Overcenter Buckles Can Be Used In An Endless Loop Configuration Or As A 2 Part Tie-down With A Fixed End And Adjustable Strap
- Heavy Duty Overcenter Buckle For The Highest Strength And Durability
- Overcenter Buckle Is Made Of Steel And Has A Zinc-yellow Plated Finish
- Overcenter Buckle Has A Latching Lock Mechanism

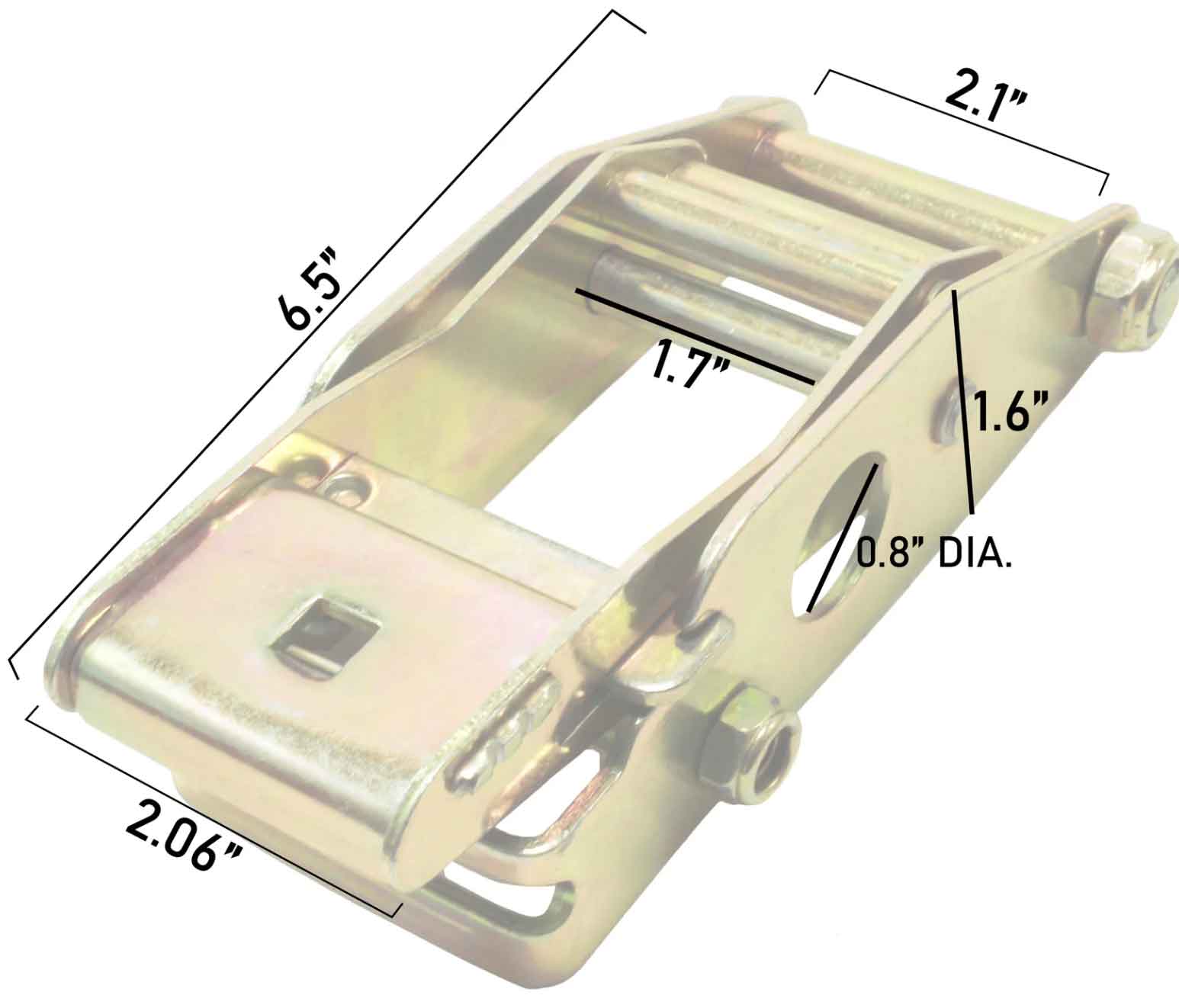

- Noted Width Refers To The Size Of Strap The Buckle Is Designed To Be Used With
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| COB175-5M | 1.75 Inch Overcenter Buckle, Zinc-Yellow | 5,000 lb | 1,667 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Additional views
Product images
Compare your options
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
