Details:

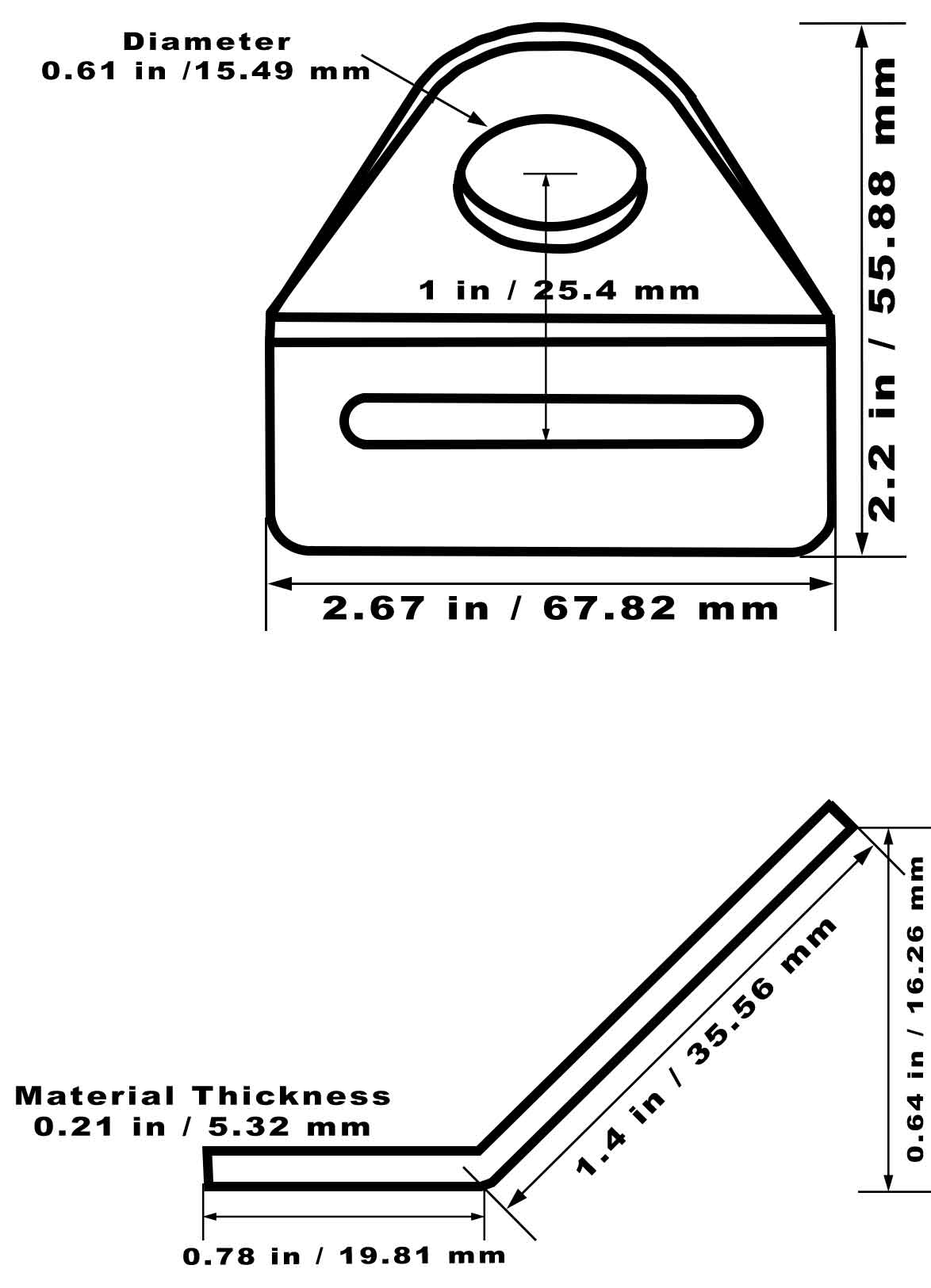

- 2 Inch 10M Angled Bolt Plate, Zinc-Yellow Finish
- 10000 lb Break Strength
- 3,333 lb Working Load Limit
- Quality Tested
Product Weight: 0.25 lb
$2.39 Each
100+ = $2.12
This product is a special order item and cant be ordered online. Please contact Customer Service for assistance.
PRODUCT NOTES:
SPECIAL WARNINGS:
- Component Only, Fitting, Bolt Plate, Hardware Only
- Angled Bolt Plates, Also Anchor Plates, Are Strap Fittings Intended To Be Mounted To A Surface
- Bolt Plates Have A Webbing Slot For The Strap To Be Sewn Onto And A Bolt Hole For Mounting With A Fastener
- Angled Bolt Plates Have A Slight Bend In The Frame
- Angled Bolt Plates Are Typically Used For Mounting On Flat Surfaces Which Allows The Bend To Extend The Webbing End Away From The Mounting Surface
- Heavy Duty Bolt Plate For The Highest Strength And Durability
- Bolt Plate Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
- Bolt Plate Bolt Hole Is Designed To Be Used With Up To A 1/2 (0.50) Inch Bolt
- The Noted Width Refers To The Width Of Strap The Bolt Plate Is Designed For, Not The Width Of The Plate Or Bolt Hole
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CFBP2-10M | 2 Inch 10M Angled Bolt Plate, Zinc-Yellow Finish | 10,000 lb | 3,333 lb |
-
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Variations of Product Type 50082
**Links below connect to the default product of the variation, make sure to adjust color, length or material as needed.
| Variation ID | Variation Difference |
|---|---|
| 50084 | End-fitting/hook Has A Black Resin Finish |
