Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$16.69 Each
50+ = $15.16
Product at a glance
Details & specifications
Break strength
6000 lb
Working load limit
2,000 lb

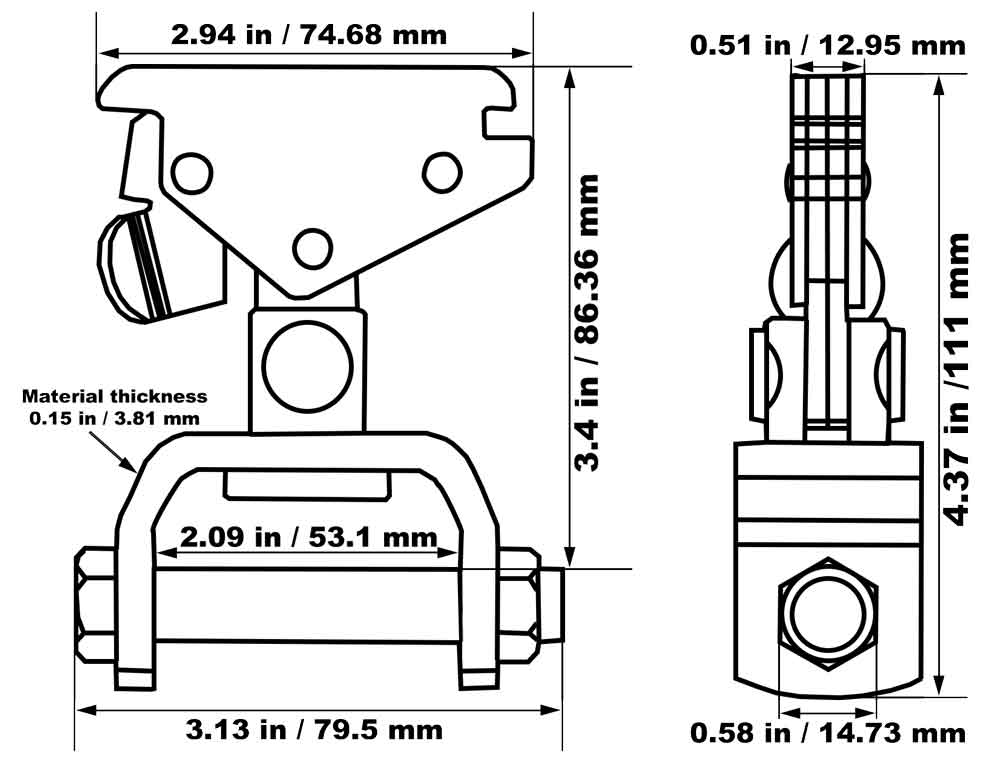

2 Inch Swiveling Spring E Fitting With Idler Plate And Bolt
Dimensions
- Product weight: 1.1 lb
Additional details
- Quality Tested
Product notes
- Component Only, Fitting, Spring E-fitting, Hardware Only
- Swiveling Spring E-fitting With Idler Is A Fitting Designed For Use With The E-series Logistic Track
- Spring E-fittings Have A Spring Loaded Clip That Engages Into The E-track Slot And Snaps In
- Spring E-fittings Are Released By Pulling Back On The Spring Loaded Clip
- The E-fitting End Swivels 360 Degrees Making It Ideal For Applications Where Vertical Or Horizontal E-track Is Used
- The Hinge Allows The Top Idler To Move Side To Side For More Flexibility
- The Bolt On The Bracket Acts As An Idler And Allows The Strap To Either Be Sewn To The Fitting Or Pass Through
- Heavy Duty Swiveling E-fitting For The Highest Strength And Durability
- E-fitting Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
- The Noted Width Refers To The Width Of Strap The Hardware Is Intended To Be Used With
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CHSEB2-6M | 2 Inch Swiveling Spring E Fitting With Idler Plate And Bolt | 6,000 lb | 2,000 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Additional views
Product images
Products Using This Component
Compare your options
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
