Details:

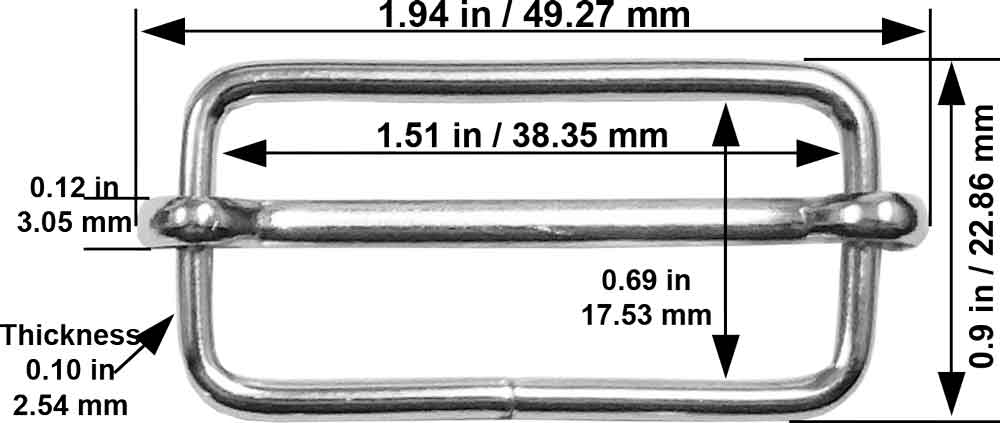

- 1.5 Inch 3-Bar Strap Adjuster With Movable Middle Bar, Nickel Plated
- 100 lb Break Strength
- 33 lb Working Load Limit
- Quality Tested
Product Weight: 0.02 lb
$1.09 Each
100+ = $0.89
Looking for Reseller or Volume Pricing? Give us a call at 1-877-360-5528
PRODUCT NOTES:
SPECIAL WARNINGS:
- Component Only, Fitting, Flat 3-bar Strap Adjuster, Hardware Only
- 3 Bar Slides Are Hardware Fittings That Have A Frame Comprised Of Three Bars And Two Slotted Openings
- 3-Bar Slides Are Also Called Strap Adjusters Because Most Products That Include A 3-bar Slide Use It For Strap Length Adjustment
- 3-Bar Slides Provide Some Holding Strength By Pinching The Strap Against Itself As It Is Fed Through The Slide
- This 3-bar Slide Configuration Has A Sliding Middle Bar For Increased Holding When Under Tension And More Flexibility When Used With Different Strap Thicknesses
- 3-bar Slides Are Sewn Into The Middle Of A Strap Or As An End-fitting
- Proper Feeding Of The Strap Over The Middle Bar Of The 3-bar Slide Is Critical To Generate The Most Holding Power Possible
- Standard Duty 3-bar Strap Adjuster For General Use And Lighter Applications
- 3-bar Strap Adjuster Is Made Of Steel And Has A Nickel Plated Finish (silver)
- Strap Adjuster Openings Are The Standard Size
- The Noted Width Refers To The Width Of Strap The Hardware Is Intended To Be Used With
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CFSAM15N | 1.5 Inch 3-Bar Strap Adjuster With Movable Middle Bar, Nickel Plated | 100 lb | 33 lb |
-
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
